刀桿

Order No.ØDTLdd1L1刀片
螺絲 / 板手
Radial
Adjustment
D max
99313-10 10.0 30.0 49 20 27 49 N9GX04T002
NS-18037
0.6Nm
NK-T6
0.25 10.5
99313-10.3 10.3 30.9 52 20 27 49 0.25 10.8
99313-10.5 10.5 31.5 52 20 27 49 0.25 11.0
99313-11 11.0 33.0 52 20 27 49 0.20 11.4
99313-11.5 11.5 34.5 55 20 27 49 0.20 11.9
99313-12 12.0 36.0 55 20 27 49 0.15 12.3
99313-12.5 12.5 37.5 58 20 27 49 0.15 12.8
99313-13 13.0 39.0 58 20 27 49 N9GX05T103
NS-20045
0.6Nm
NK-T6
0.30 13.6
99313-13.5 13.5 40.5 61 20 27 49 0.30 14.1
99313-14 14.0 42.0 61 20 27 49 0.25 14.5
99313-14.5 14.5 43.5 64 20 27 49 0.25 15.0
99313-15 15.0 45.0 64 20 27 49 0.20 15.4
99313-15.5 15.5 46.5 67 20 27 49 0.20 15.9
99313-16 16.0 48.0 74 25 31 55 N9GX060204
NS-22055
0.9Nm
NK-T7
0.40 16.8
99313-16.5 16.5 49.5 76 25 31 55 0.40 17.3
99313-17 17.0 51.0 76 25 31 55 0.35 17.7
99313-17.5 17.5 52.5 78 25 31 55 0.35 18.2
99313-18 18.0 54.0 78 25 31 55 0.30 18.6
99313-18.5 18.5 55.5 80 25 31 55 0.30 19.1
99313-19 19.0 57.0 80 25 31 55 0.25 19.5
99313-19.5 19.5 58.5 85 25 31 55 0.25 20.0
99313-20 20.0 60.0 85 25 31 55 N9GX070304
NS-25060
0.9Nm
NK-T7
0.50 21.0
99313-20.5 20.5 61.5 87 25 31 55 0.50 21.5
99313-21 21.0 63.0 87 25 31 55 0.45 21.9
99313-21.5 21.5 64.5 88 25 31 55 0.45 22.4
99313-22 22.0 66.0 88 25 31 55 0.40 22.8
99313-22.5 22.5 67.5 90 25 31 55 0.40 23.3
99313-23 23.0 69.0 90 25 31 55 0.35 23.7
99313-23.5 23.5 70.5 92 25 31 55 0.35 24.2
99313-24 24.0 72.0 92 25 31 55 0.30 24.6
99313-25 25.0 75.0 114 32 43 58 N9GX090308
NS-30072
2.0Nm
NK-T9
0.50 26.0
99313-26 26.0 78.0 115 32 43 58 0.50 27.0
99313-27 27.0 81.0 117 32 43 58 0.40 27.8
99313-28 28.0 84.0 126 32 43 58 0.40 28.8
99313-29 29.0 87.0 127 32 43 58 0.30 29.6
99313-30 30.0 90.0 130 32 43 58 0.30 30.6

N9GX...

外刃刀片

  • 双角度刀片,加工表面優異,進給率高
  • 双角度刀片,主離隙角更耐衝擊,第二離隙角可提高進給率
  • 內刃、外刃同一款刀片
  • 刀片有4個切削刃口,更經濟
  • 加工表面優異
  • 加工尺寸穩定

刀片

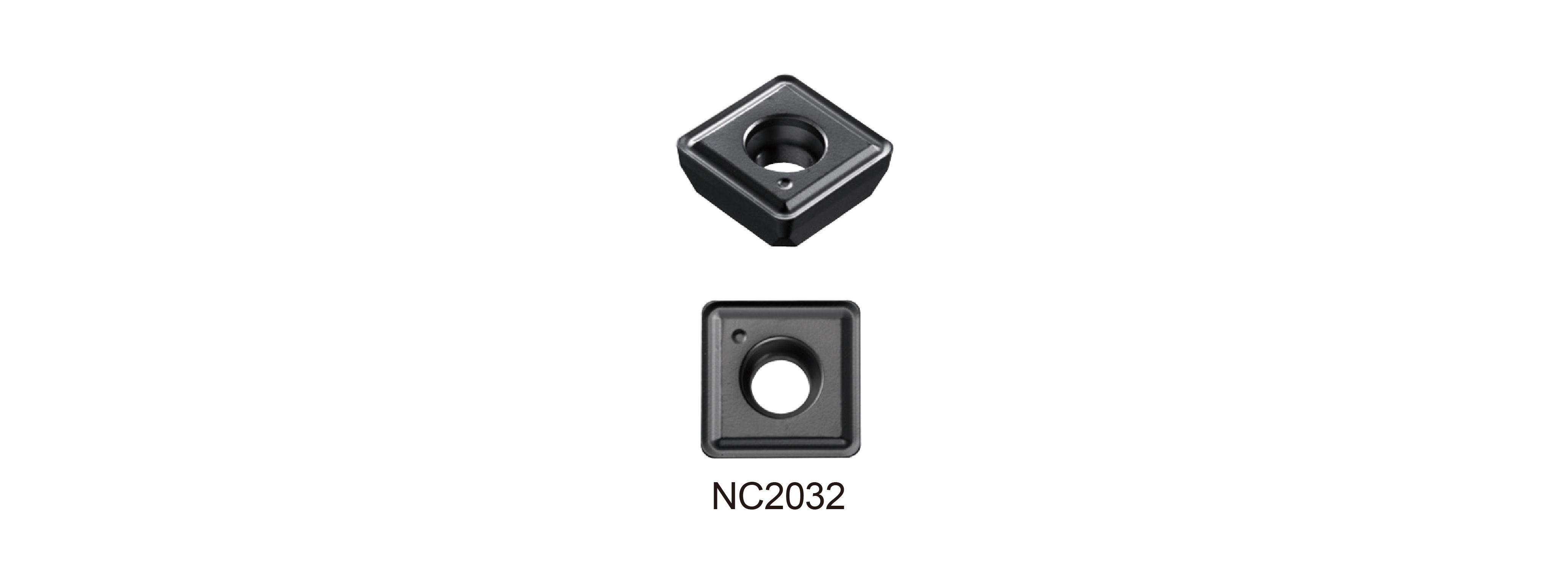

  • NC2032: •K20F底材,ALTIN鍍層,泛用於鋼鐵,鑄鐵,不鏽鋼,硬化鋼<HRC50
Part No.

鍍層

材質 尺寸螺絲板手
LSre
N9GX04T002 NC2032 AlTiN K20F 4.07 1.8 0.2 NS-18037
0.6Nm
NK-T6
N9GX05T103 NC2032 AlTiN K20F 5.07 2.0 0.3 NS-20045
0.6Nm
NK-T6
N9GX060204 NC2032 AlTiN K20F 6.35 2.38 0.4 NS-22055
0.9Nm
NK-T7
N9GX070304 NC2032 AlTiN K20F 7.94 3.18 0.4 NS-25060
0.9Nm
NK-T7
N9GX090308 NC2032 AlTiN K20F 9.52 3.18 0.8 NS-30072
2.0Nm
NK-T9
